High Efficiency Automatic
Soldering Robot System!

  • Ceramic Heater Tip!
  • I-352

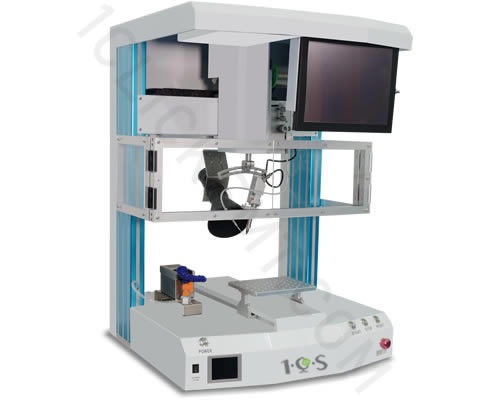

  • H351

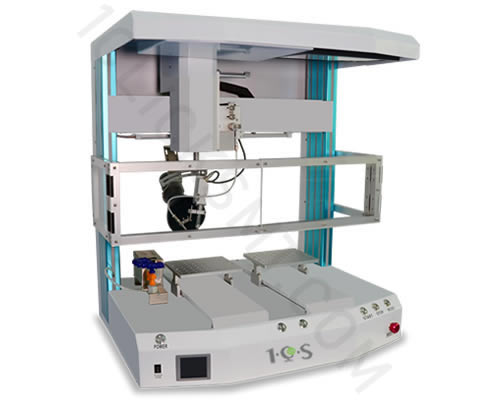

  • H352

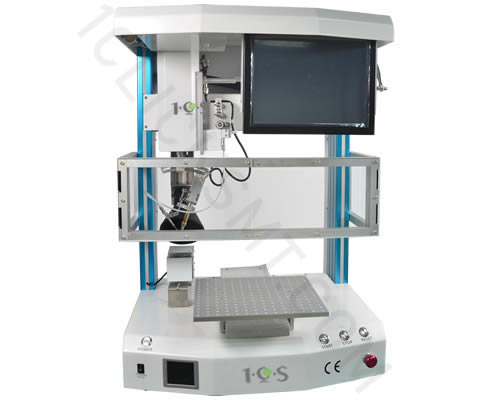

  • G351
  • L331

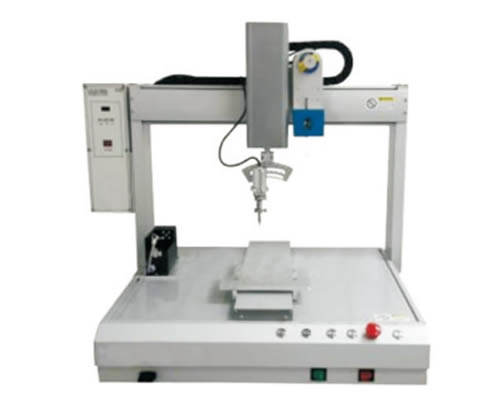

  • L332

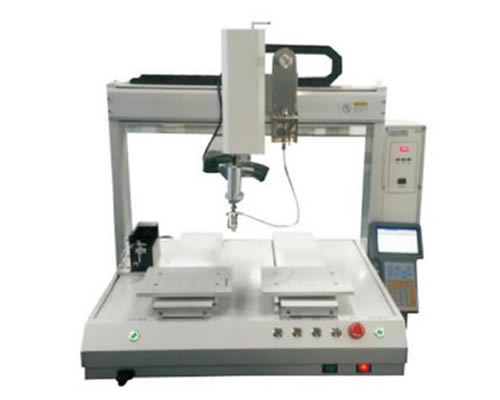

  • L352

Automatic Soldering Robot

Automatic Soldering Robot Videos

  • Automatic Motor Soldering

    Automatic Motor SolderingMotor Soldering

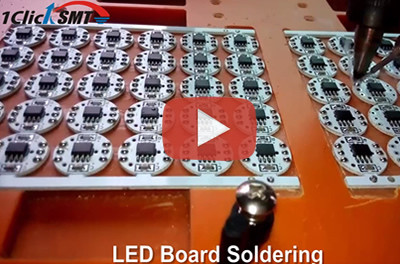

  • Automatic LED Board Soldering

    Automatic LED Board SolderingLED Board Soldering

  • Automatic H351 Through Hole Drag Solder

    Automatic H351 Through Hole Drag SolderH351 Through Hole Drag Solder

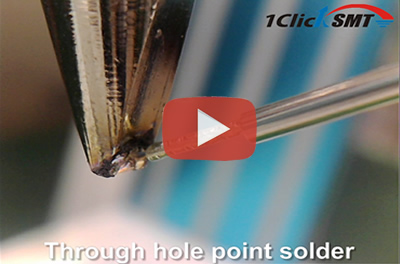

  • Automatic H351 Through hole point solder

    Automatic H351 Through hole point solderH351 Through hole point solder

  • Automatic Through Hole Soldering

    Through Hole SolderingThrough Hole Soldering

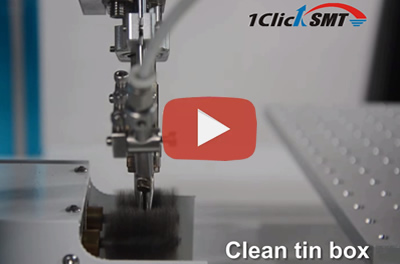

  • Clean tin operation

    Clean tin operationClean tin operation

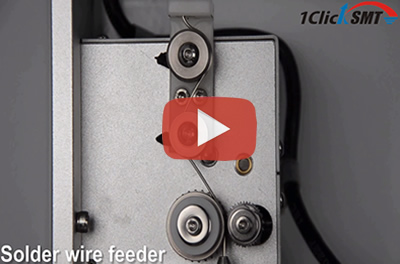

  • Solder Wire Feeder Operation

    Solder Wire Feeder OperationSolder Wire Feeder Operation

Technology

1CLICK SMT

Automatic soldering robot system

1
PC control+wireless controller for programming.
2

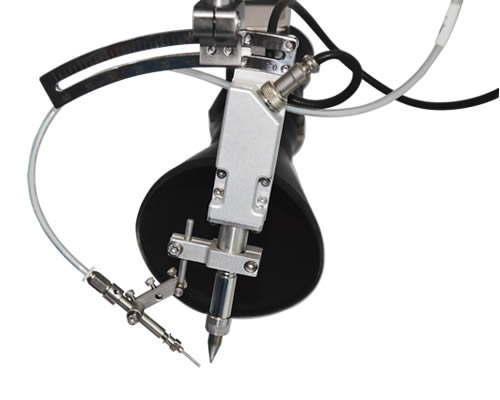

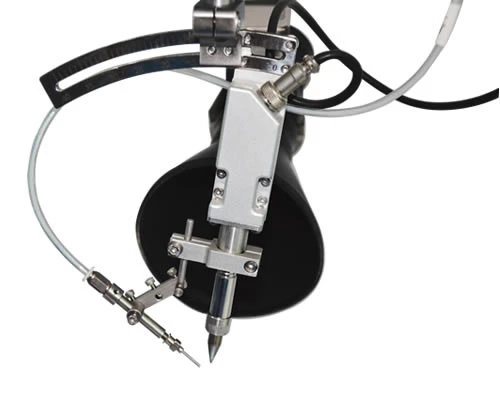

Mobile smoke cover (optional ) can be easily connected with smoke extractor.
3
Various soldering tips can meet different process requirement. customized solering tips is also available.
4
Heating element adopt silver coil which can ensure long lifetime . Induction type soldering tip can be easily changed with lower cost.
5
Modular online soldering machine, can be equipped with a return board devices.
6
Optional camera calibration system.
7
Optional barcode scanner,Can connect with MES system.
8
Optional N2 soldering system.

Automatic soldering robot system.

1. Heating element adopt silver coil which can ensure long lifetime. Induction type soldering tip can be easily changed with lower cost. heating speed is very fast.With the rotation axis, iron components can rotate 330 degrees. fully meet the differeent angle of welding products.

2. 400W high frequency induction heating system has rapid temperature recovery time. Optional 600W soldering station, For solder joints that absorb a large amount of heat, heat can be quickly transferred to the pads and pins, heat concentration, ensure high soldering quality.

3. The soldering robot is equipped with industrial PC with windows 7 English operation system.Self-developed advanced software, fool-style programming with wireless controller like play game, all parameters can be set in one program, such as moving path, solder wire feeding quantity, solder wire feeding speed, running speed, soldering time etc, very easy to use. The self-developed software & hardware researched enjoy free upgrade in the whole service life.

4. Visualizing the soldering process,soldering trajectory displayed on PC in real time.

Learn more

Solutions

GoodSolutions

We are company specialized for manufacturing soldering robot system.
If you have soldering troubles below, please click for our solution.
